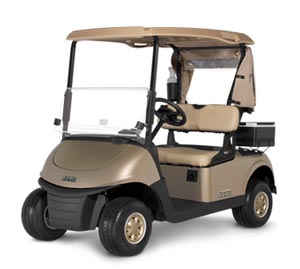

FLEET RXV E-Z-GO Golf Cart
Unrivaled Innovation That’s Always On The Move
As the long-standing leader in golf car innovation, AC drivetrain efficiency and IntelliBrake™ technology, the E-Z-GO® RXV® continues to raise the bar on superior golf car performance. No other vehicle delivers reliable, efficient performance and a host of upgraded features like the RXV.
Standard Features
18-in Turf Tires
Integrated Cup, Ball & Tee Holders
Sweater Basket
Energy Transfer Bumpers
Contoured, Ergonomic Seats
Oversized Bag Well
Available Colors
Options/ Accessories
Windshield
Sun Canopy
Weather Enclosure
Wheel Covers
Sand Bottle, Bucket & Rake
Club & Ball Washer
Cooler
Message Holder
SoftSwipe® Cleat Cleaner
Side Basket
Glove Box
Rearview Mirror
Headlights & Taillights
Hour Meter
Fuel Gauge (gas only)
48-volt Battery Charger (electric only)
DC/DC Converter (electric only)
CE Kit
Battery Fill System (electric only)
State of Charge Meter (electric only)
12V outlet
USB port
Handheld Diagnostic Tool
Divot Repair
Tow Bar
Solar Panel Kit
VIDEO
Downloads
FLEET RXV E-Z-GO Golf Cart Brochure
FLEET RXV E-Z-GO Golf Cart Electric Model
FLEET RXV E-Z-GO Golf Cart Gas Model
Electric SPECS
Body & Chassis
Frame
Welded steel with epoxy coating
Body & Finish
TPO
Standard Color
Forest Green
Dimensions
Overall Length
94.5 in (240 cm)
Overall Width
47 in (119 cm)
Overall Height (no canopy)
45.7 in (116 cm) (top of steering wheel)
Overall Height (with canopy)
68.5 in (174 cm) (top of sun canopy)
Wheel Base
65.7 in (167 cm)
Front Wheel Track
35.5 in (90 cm)
Rear Wheel Track
38 in (97 cm)
Ground Clearance (at differential)
4.5 in (11 cm)
Power
Power Source
48-volt DC
Motor Type
48-volt AC
Horsepower (kW)
4.4 hp (3.3 kW) continuous
Electric System
48-volt
Batteries (qty/type)
Four, 12-volt deep cycle
Battery Charger
48 VDC PowerWise QE high frequency, UL and CSA
Speed Controller
230-amp AC controller
Drive Train
Motor shaft direct drive
Transaxle
Limited slip differential
Gear Selection
Dash-mounted forward-neutral-reverse (Integrated into key switch)
Rear Axle Ratio
16.99:1
Performance
Seating Capacity
2-person
Dry Weight (without batteries)
611 lb (278 kg)
Curb Weight
911 lb (414 kg)
Vehicle Load Capacity
800 lb (360 kg)
Outside Clearance Circle
19.2 ft (5.8 m)
Ground Speed (level ground)
8-15 mph (13-24 kph) programmable
Towing Capacity
3 E-Z-GO golf cars with approved tow bars
Steering & Suspension
Steering
Double-ended rack and pinion
Front Suspension
Independent A-arm coil over shock
Rear Suspension
Mono-Leaf springs with hydraulic shock absorbers
Service Brake
Induction motor
Parking Brake
Automatic electro-magnetic
Front Tires
Turf 18 x 8.50-8 (4-ply rated)
Rear Tires
Turf 18 x 8.50-8 (4-ply rated)
FREEDOM TXT Gas SPECS
Body & Chassis
Frame
Welded steel with epoxy coating
Body & Finish
TPO
Standard Color
Forest Green
Dimensions
Overall Length
94.5 in (240 cm)
Overall Width
47.0 in (119 cm)
Overall Height (no canopy)
45.7 in (116 cm) (top of steering wheel)
Overall Height (with canopy)
68.5 in (174 cm) (top of sun canopy)
Wheel Base
65.7 in (167 cm)
Front Wheel Track
35.5 in (90 cm)
Rear Wheel Track
38.0 in (97 cm)
Ground Clearance (at differential)
3.3 in (8 cm)
Power
Power Source
4-cycle, 24.5 cu in (401 cc) low emissions
Valve Train
Single cylinder OHV with hemispheric combustion chamber
Horsepower (kW)
13.5 hp (10 kW) exceeds SAE J1940 standard
Electric System
Starter/generator, solid state regulator
Batteries (qty/type)
One, 12-volt maintenance-free
Air Cleaner
Industrial-rated dry filter
Lubrication
Pressurized oil system
Oil Filter
Spin-on
Cooling System
Air-cooled
Fuel Capacity
5.85 gallons (23.1 L)
Drive Train
Automatic, continuously variable transmission (CVT)
Transaxle
Differential with helical gears
Gear Selection
Forward-reverse
Rear Axle Ratio
11.42:1 (forward) 15.78:1 (reverse)
Performance
Seating Capacity
2-person
Dry Weight (without batteries)
697 lb (316 kg)
Curb Weight
747 lb (339 kg)
Vehicle Load Capacity
800 lb (360 kg)
Outside Clearance Circle
19.0 ft (5.8 m)
Forward Ground Speed
12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
Towing Capacity
3 E-Z-GO golf cars with approved tow bars
Steering & Suspension
Steering
Double-ended rack and pinion
Front Suspension
Independent A-arm coil over shock
Rear Suspension
Mono-leaf spring
Service Brake
Rear wheel mechanical, self-adjusting drums
Parking Brake
Self-compensating, single point engagement
Front Tires
Turf 18 x 8.50-8 (4-ply rated)
Rear Tires
Turf 18 x 8.50-8 (4-ply rated)
Interested in the FLEET RXV?
Willowbrook Utility Vehicles – Houston Golf Cart Sales and Rentals has the best pricing in Southeast Texas on new Freedom® TXT , pre-owned Freedom® TXT models, and Freedom® TXT rentals. Contact one of our Sales Managers at (832) 237-8333 or fill out the information below, and one of our golf cart specialist will be in contact shortly.
