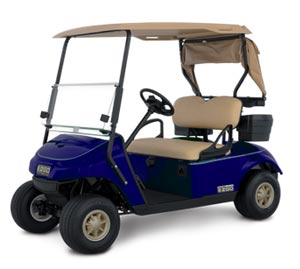

FLEET TXT E-Z-GO Golf Cart

FLEET-TXT-E-Z-GO-Golf-CartRefined To A Tee

The E-Z-GO® TXT® golf car combines proven reliability with the industry’s latest innovations to deliver a consistently smoother ride and greater energy efficiency. Featuring a 48-volt electric drive train and TruCourse™ Technology, it offers the perfect balance of performance and efficiency to your course.

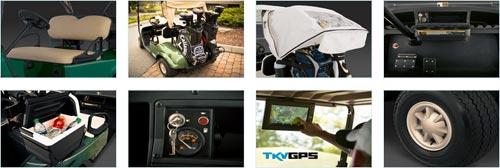

Standard Features

  • Greater Dash Storage
  • Taller, Wider Cup Holders
  • Easy Access Ball Holders
  • Direction Switch for Simplified Operation
  • Redesigned, More Comfortable Seats
  • Stronger Hip Restraints
  • Oversized Bagwell
  • Sweater Basket

Available Colors
FLEET-TXT-E-Z-GO-Golf-Cart-ColorsFLEET-TXT-E-Z-GO-Golf-Cart-features

Options/ Accessories

  • Windshield
  • Sun Canopy
  • Wheel Covers
  • Sand Bottle, Bucket & Rake
  • Club & Ball Washer
  • Cooler
  • Message Holder
  • Impact Resistant Front Bumper
  • Unique Key Switch
  • Hour Meter
  • Analog Fuel Gauge
  • CE Kit
  • State of Charge Meter
  • USB port
  • Handheld Diagnostic Tool
  • Divot Repair
  • Tow Bar
  • Solar Panel Kit
  • Side Basket
  • Differential Guard
  • Fender Scuff Guard
  • Battery Fill System

Downloads

FLEET TXT E-Z-GO Golf Cart Brochure
FLEET TXT E-Z-GO Golf Cart Electric Model Brochure
FLEET TXT E-Z-GO Golf Cart Gas Model Brochure


Electric SPECS

Body & Chassis
Frame Welded steel with powder coating
Front Body & Finish Injection-molded TPO
Rear Body & Finish Injection-molded TPO
Standard Color Ivory or Forest Green
Dimensions
Overall Length 93.0 in (236 cm)
Overall Width 47.0 in (119 cm)
Overall Height (no canopy) 46.5 in (118 cm) (top of steering wheel)
Overall Height (with canopy) 67.5 in (171 cm) (top of sun canopy)
Wheel Base 66.0 in (168 cm)
Front Wheel Track 34.0 in (86 cm)
Rear Wheel Track 38.5 in (97 cm)
Ground Clearance (at differential) 4.5 in (11 cm)
Power
Power Source 48-volt DC
Motor Type Shunt Wound
Horsepower (kW) 3.0 hp (2.2 kW) Continuous
Electric System 48-volt
Batteries (qty/type) Six, 8-volt deep cycle
Key or Pedal Start Pedal
Battery Charger 48 VDC PowerWise™ QE, 120 VAC, UL & CSA
Speed Controller 250-amp solid-state controller
Drive Train Motor shaft direct drive
Transaxle Differential with helical gears
Gear Selection Dash-mounted forward-neutral-reverse
Rear Axle Ratio 12.44:1
Warranty Standard: 20,000 amp/hr
Platinum: 21,500 amp/hr – optional
Diamond: 25,000 amp/hr – optional
TruCourse Programmable Modes Coastal, Mild hill, Steep hill
Performance
Seating Capacity 2-person
Dry Weight (without batteries) 557 lb (253 kg)
Curb Weight 935 lb (424 kg)
Vehicle Load Capacity 800 lb (363 kg)
Outside Clearance Circle 19.0 ft (5.8 m)
Speed (level ground) 10.2-14.8 mph (16.4-23.8 kph)
Towing Capacity 3 E-Z-GO golf cars with approved permanent tow bar
Steering & Suspension
Steering Self-compensating rack and pinion
Front Suspension Leaf springs with hydraulic shock absorbers
Rear Suspension Leaf springs
Service Brake Rear wheel mechanical self-adjusting drum
Parking Brake Self-compensating single-point engagement
Front Tires 18 x 8.50-8 (4-ply rated)
Rear Tires 18 x 8.50-8 (4-ply rated)

FREEDOM TXT Gas SPECS

Body & Chassis
Frame Welded steel with powder coating
Front Body & Finish Injection-molded TPO
Rear Body & Finish Injection-molded TPO
Standard Color Ivory or Forest Green
Dimensions
Overall Length 93.0 in (236 cm)
Overall Width 47.0 in (119 cm)
Overall Height (no canopy) 46.5 in (118 cm) (top of steering wheel)
Overall Height (with canopy) 67.5 in (171 cm) (top of sun canopy)
Wheel Base 66.0 in (168 cm)
Front Wheel Track 34.0 in (86 cm)
Rear Wheel Track 38.5 in (97 cm)
Ground Clearance (at differential) 4.25 in (10.8 cm)
Power
Power Source 4-Cycle 24.5 cu in (401 cc) low-emissions
Valve Train Single-cylinder OHV with hemispheric combustion chamber
Horsepower (kW) 13.5 hp (10.1 kW) exceeds SAE J1940 Std.
Electric System Starter/Generator, Solid-State Regulator
Batteries (qty/type) One, 12-volt maintenance-free
Key or Pedal Start Pedal
Air Cleaner Industrial-rated dry filter
Lubrication Pressurized oil system
Fuel Capacity 5.3 gallon (20.0 L) tank
Drive Train Continuously variable transmission (CVT)
Transaxle Differential with helical gears
Gear Selection Forward-Reverse
Rear Axle Ratio 11.42:1 (forward), 15.78:1 (reverse)
Oil Filter Spin On
Cooling System Air Cooled
Performance
Seating Capacity 2-person
Dry Weight 760 lb (344 kg)
Curb Weight 780 lb (354 kg)
Vehicle Load Capacity 800 lb (363 kg)
Outside Clearance Circle 19.0 ft (5.8 m)
Speed (level ground) 13 mph +/- 0.5 mph (21 kph +/- 0.8 kph)
Towing Capacity 3 E-Z-GO golf cars with approved permanent tow bar
Steering & Suspension
Steering Self-compensating rack and pinion
Front Suspension Leaf springs with hydraulic shock absorbers
Rear Suspension Leaf springs with hydraulic shock absorbers
Service Brake Rear wheel mechanical self-adjusting drum
Parking Brake Self-compensating single-point engagement
Front Tires 18 x 8.50-8 (4-ply rated)
Rear Tires 18 x 8.50-8 (4-ply rated)
